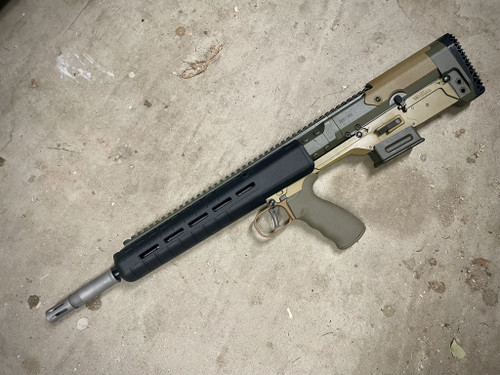

Low profile L123A3 style handguard cover for BRN-180 upper receivers utilizing AKB-23 bullpup conversions. Tight and rigid connection via slip fit and three M-Lok mounting points. Designed for uppers with barrels shorter than 16" (such as 13.9", 10.5" etc), these covers leave the bottom M-lok slots open for accessory mounting.
*The first customer to provide pictures of this on their AKB-23 with an m203 mounted will receive a full refund.*
NOTE: This batch of covers are PROTOTYPES. As such they are slightly out of spec compared to the production units. If you look closely in the images of it mounted you can see that the side M-lok slots (although in spec) do not line up perfectly with the handguard slots underneath. The front/lower M-lok attachment tab is also tighter than intended. No thread locker provided.
SLS PA-12 Nylon
Installation:
- Ensure M-Lok t nuts are inserted fully into the inside of the handguard cover.
- Back out the screws until they are flush with the face of the t nut.
- Slide the assembly over your handguard and into position.
- Push the screws in to insert t nuts into M-lok slots (The front t nut will clamp the front of your handguard outside of the mlok slot).
